Heavy Duty Pipe Elevators (Pair of 2) 4"-8" Diameter

Heavy Duty 4“-8" Pipe elevator (pair)

Precision fit PVC Casting elevators are a fast and safe way to install bell end well casing. The heavy duty elevators are constructed of 1/2" wall DOM steel tube. The DOM steel tube is machined to specific pipe OD with a chamfer added to the top for the pipe to bell transition.

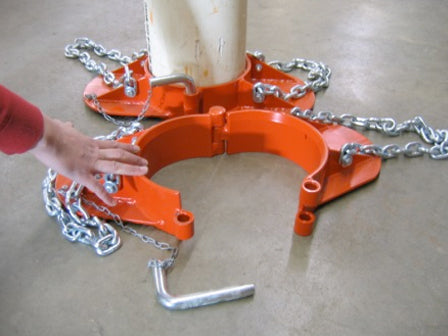

Elevator Details: 3/4" pins and hinges used on both sides of elevator.

4"-8" Heavy duty elevators have two 5/16" grade 43 high test chains.

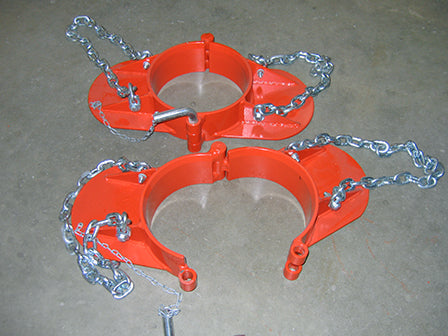

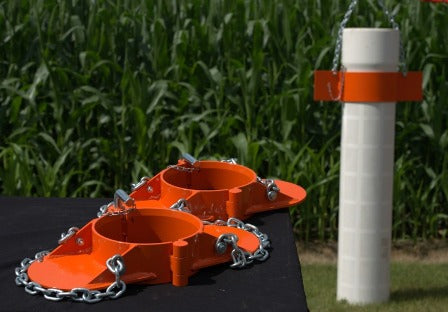

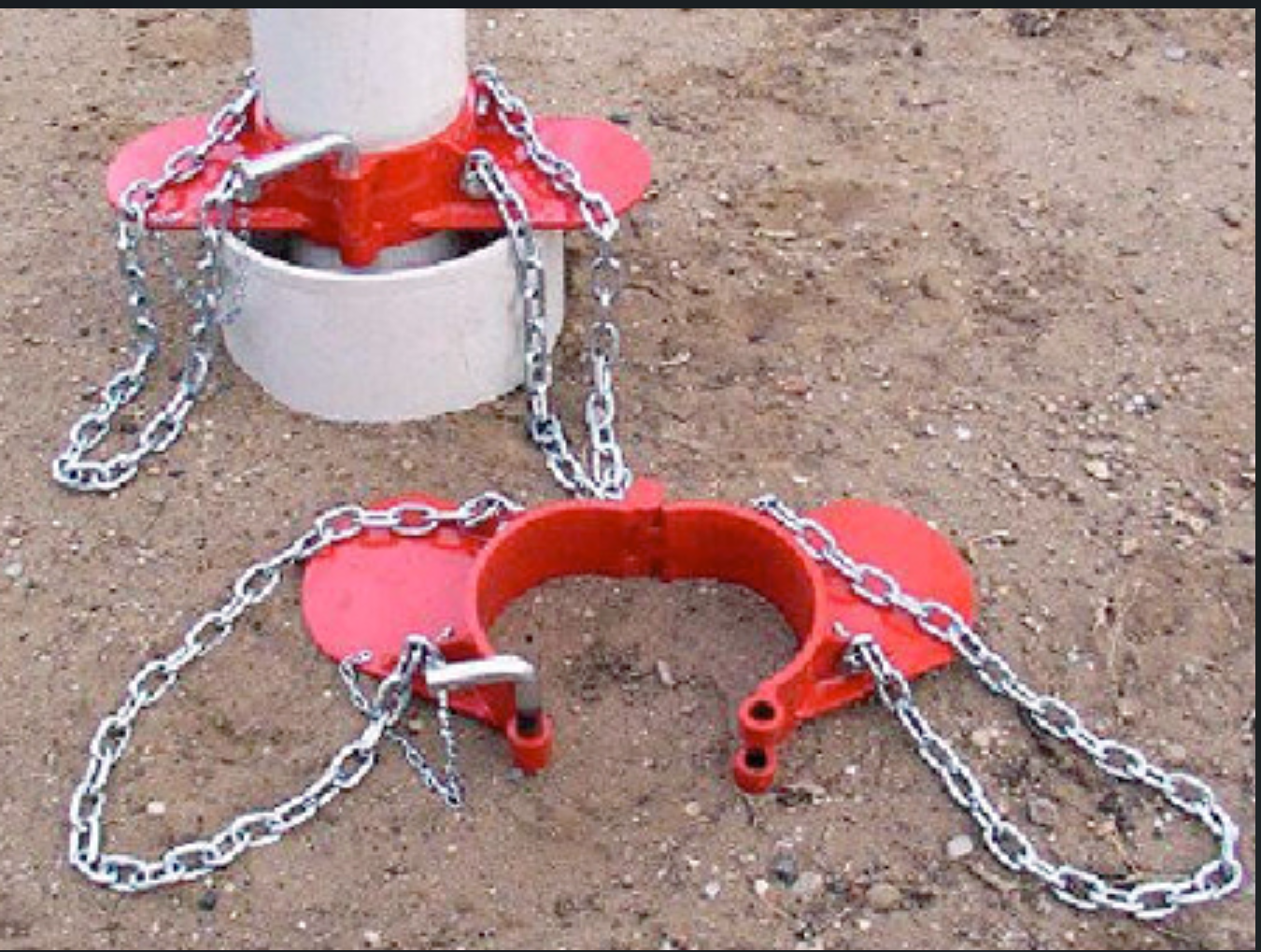

Heavy Duty Elevators are sold in pairs of two; one to hold and one to lift. These elevators are equipped with two 5/16" chains which is load tested to 3000 lbs.

PVC Pipe Size and Outside Diameter

4" (4.5"OD)

4-1/2" (5" OD)

5" (5.563" OD)

6" (6.625" OD)

6-1/4" (6.625" OD)

8" (8.625" OD)
