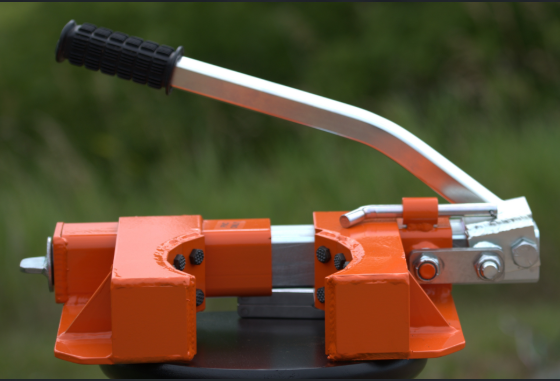

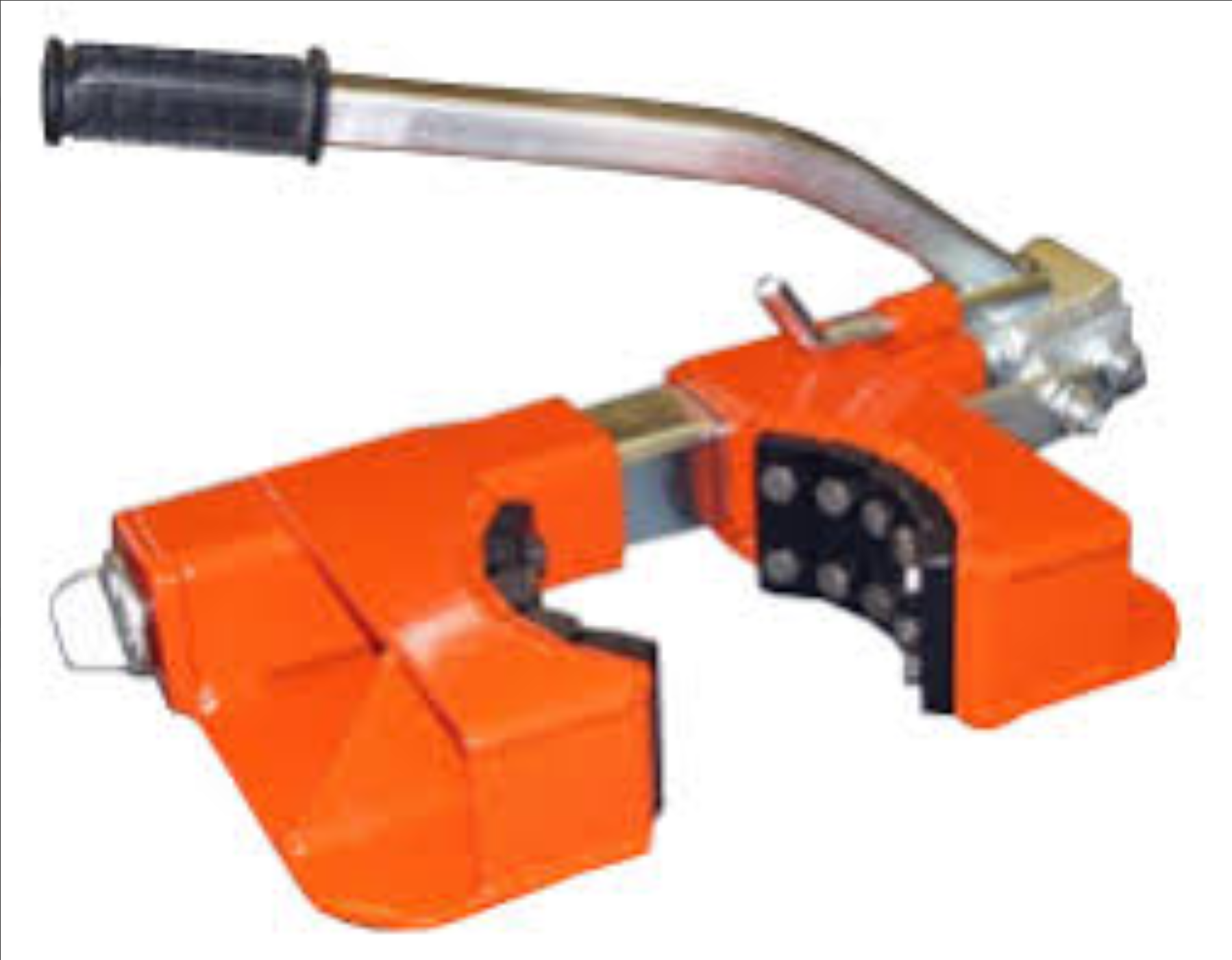

Kwik Klamp 3

Main body constructed of 2″ & 2 1/2″ 1/4″ wall steel tube.

Easy to operate, over center locking of jaws when downward pressure is applied to 19″ long lever handle

1/2″ safety pin used to prevent accidental unclamping.

Allows workers to bring pipe or drill joint up to an easy working level.

Specifications & Capabilities

• The tool weights only 37 lbs. and is 20″ long x 7 1/2″ wide.

• Designed to hold 6″ PVC or HDPE pipe.

• Jaws are equipped with 20 carbide tipped grippers (3/8-16×1/2).

• Excellent holding capability. Load tests on flush joint PVC pipe 4,000 lbs; load tests on PVC pipe with klamp holding under a bell 7500 lbs.

Load Test Reports:

1) KK3 Flush Joint PVC ESP026328P J&K Tool

2) KK3 BellEnd PVC ESP026328P J&K Tool

• KWIK KLAMP is one of the safest, time saving tools you will ever own.

The Kwik Klamp 3 is also capable of holding 5″ PVC pipe with the additional jaw pads and bolts.

Please call or email me for replacement parts.
