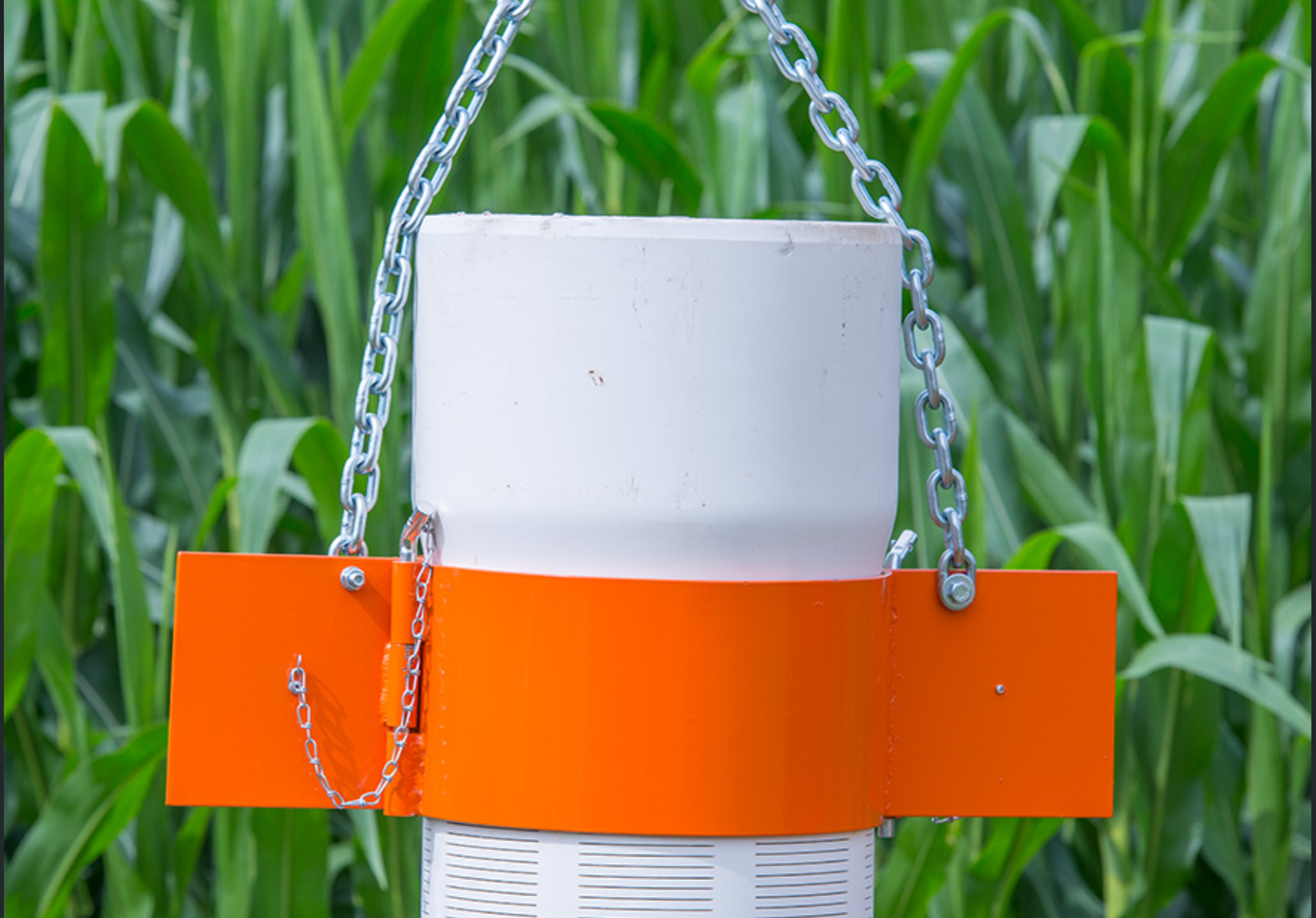

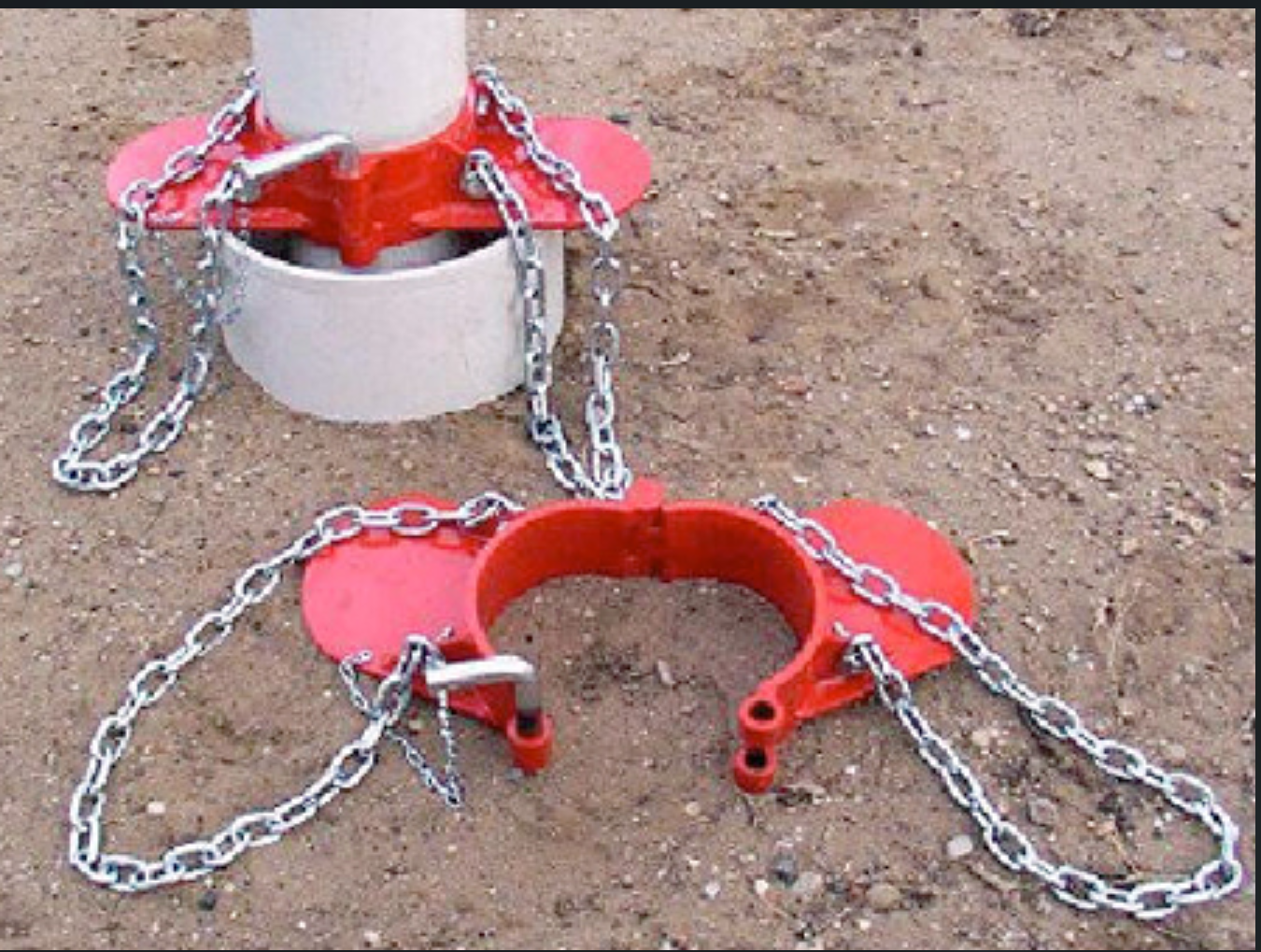

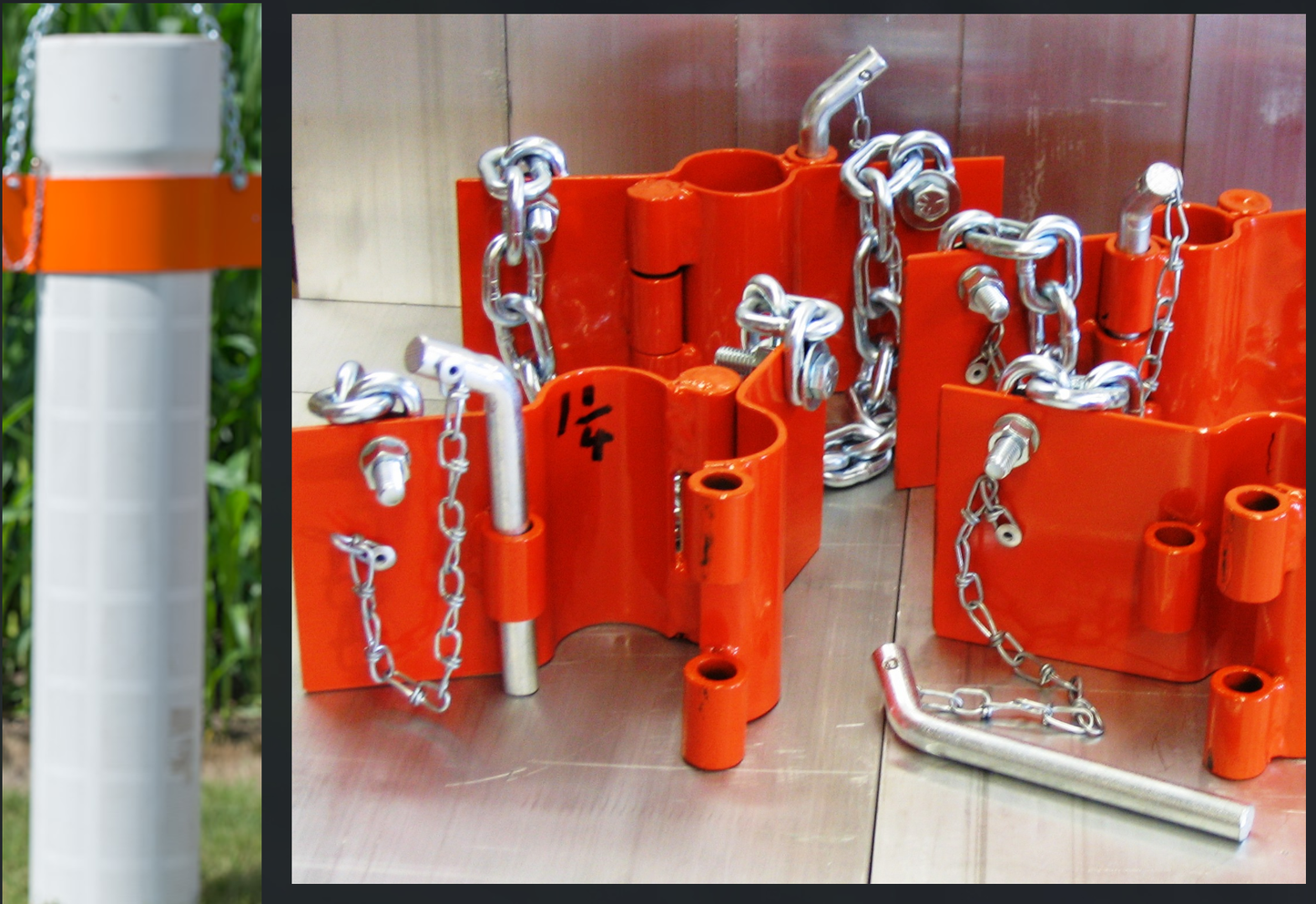

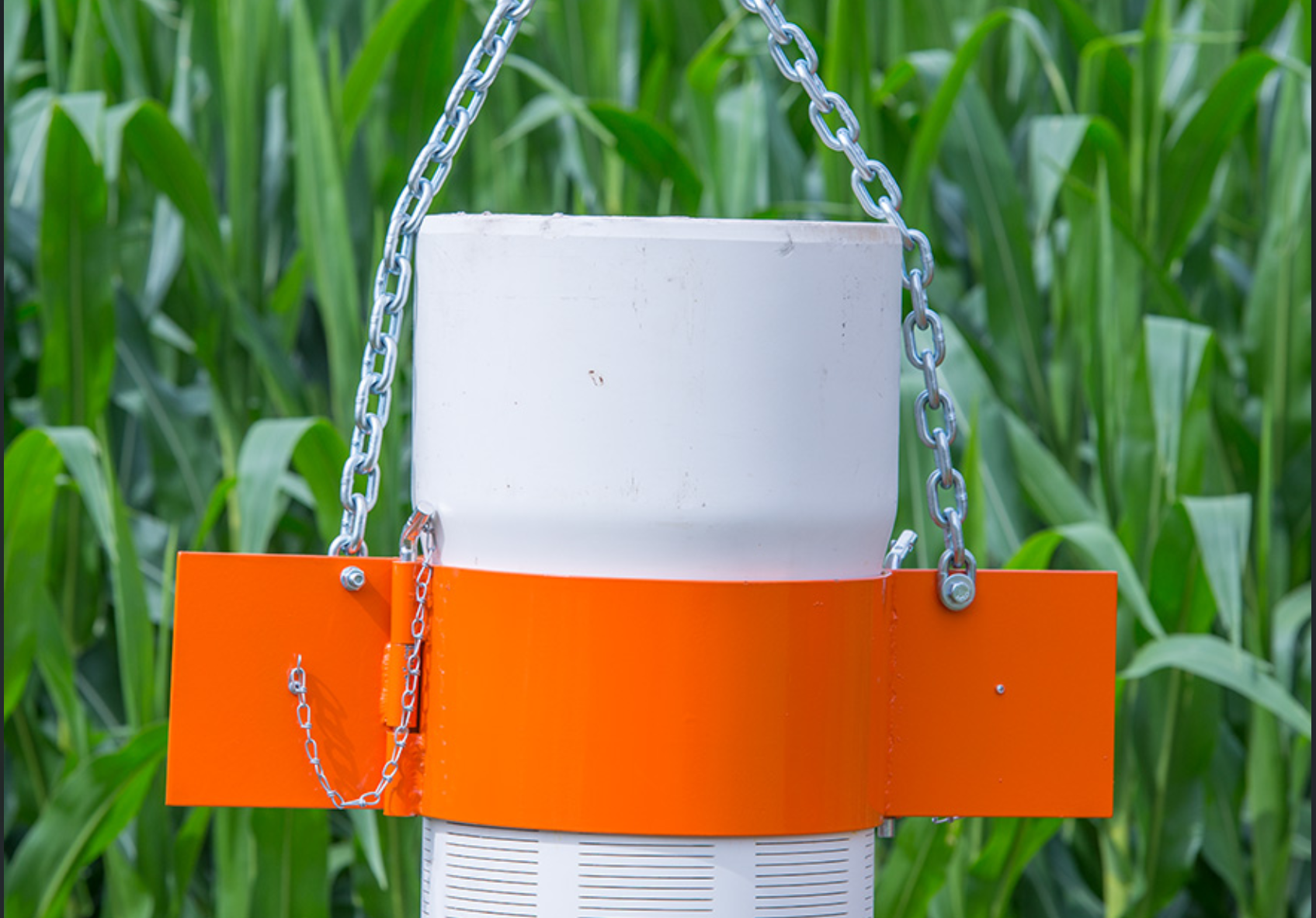

Our PVC Elevators are safer than ropes, cables or loop chains and allow you safe access to your PVC pipes. Equipped with zinc plated, grade 43 chain connected to 1/4″ of formed welded steel, these strong and durable elevators will go the long haul.
Elevator Details:
Locks are 1/2″ lock pin and hinges.
Size: Lightweight elevators constructed of formed and welded 1/4 steel.
Install: Fast and safe way to install bell end well casing to include couplers.
Load rating based on chain size:
1″ to 6 1/4 elevators are equipped with 1/4″ grade 43 high test chain. 2000 lbs.
8″ to 12″ elevators are equipped with 5/16″ grade 43 high test chain. 3000 lbs.
